YDx

YDx is a high precision Inertial Sensing (Vertical Reference Unit/ Attitude and Heading Reference system) Module of 6 Dof / 10 DOF. YDx incorporates Advanced sensor fusion algorithms to provide high accuracy output with scaling, mis – alignment and bias compensation. YDx comes with Yaanendriya software compatible with both Linux and Windows. It is used for Sensor calibration, data logging and data viewing features.

YDx

Powerful Features

1

Advanced Sensor Fusion

2

0.05°–0.1°

Dynamic Accuracy

3

<0.05°

Static Precision

4

<0.2°

Heading Accuracy

5

4 ms

Signal Latency

6

100 Hz–1 kHz

Output Rate

PRODUCT OVERVIEW

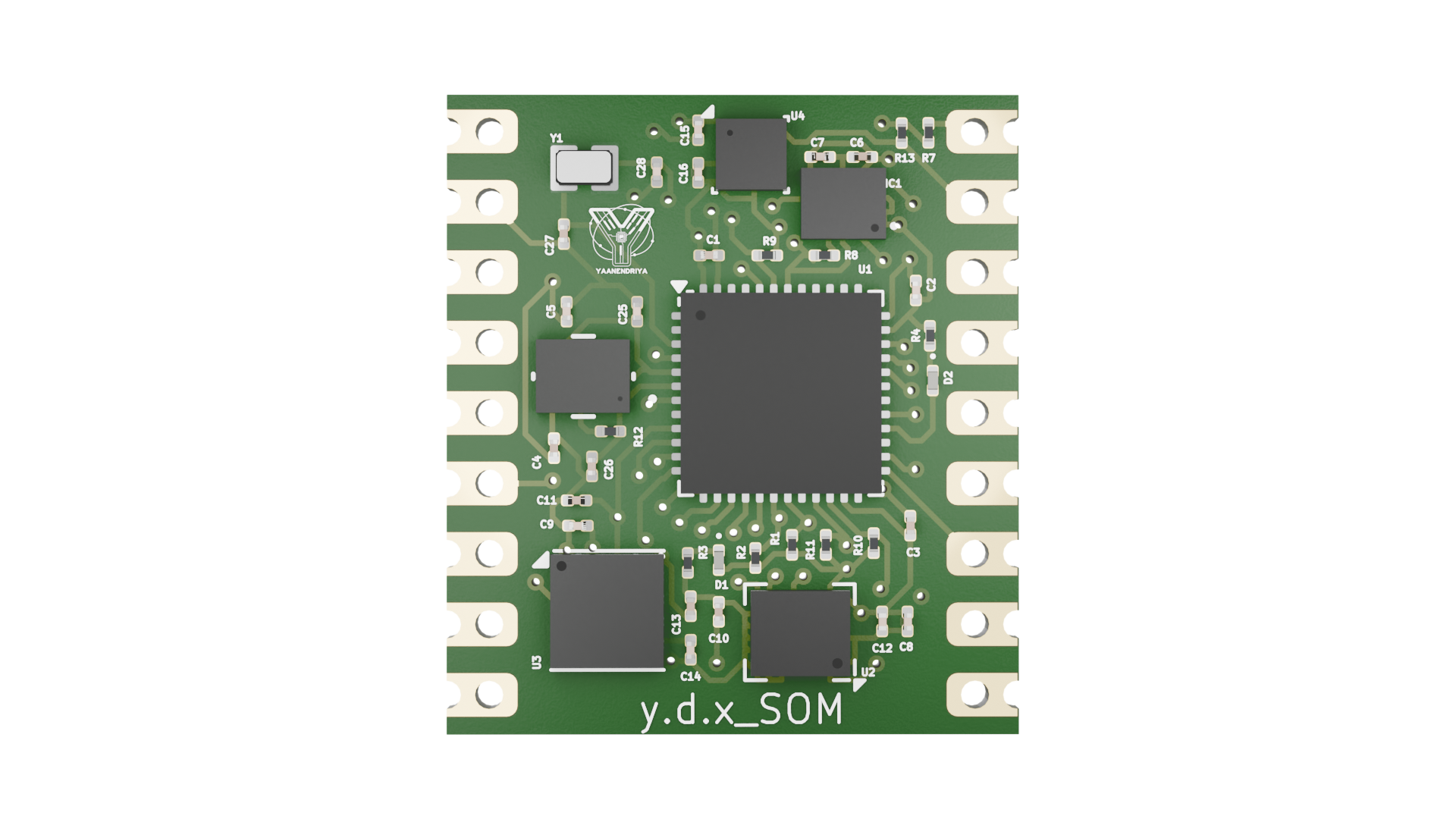

YDX is a compact, high-performance inertial sensing module engineered by Yaanendriya for precise motion sensing and navigation. It integrates cutting-edge MEMS accelerometers, gyroscopes, magnetometers, and barometers with advanced sensor fusion algorithms, providing accurate orientation (Roll, Pitch, Heading) and motion data. The system compensates for sensor bias, scale factors, and misalignment to ensure highly reliable outputs in dynamic and static environments.
Loading specifications...
